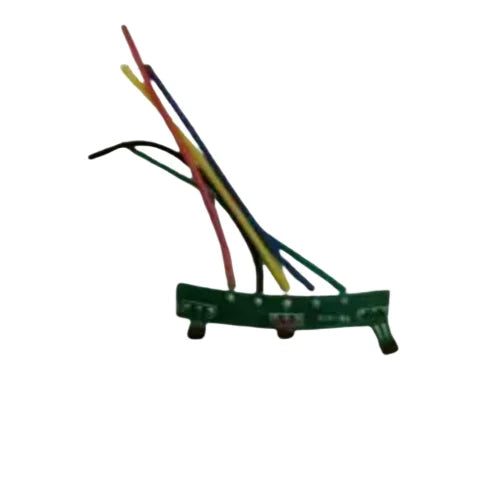

SENSOR PLATE [AHH1-AH60-AHH1]

Key Features

• Triple Hall Effect Sensor System – Uses AHH1-AH60-AHH1 configuration for superior motor control.
• High-Precision Rotor Positioning – Enables seamless motor synchronization.
• Fast Response Time – Provides instant feedback to the controller for smooth acceleration.
• Low Power Consumption – Maximizes battery efficiency and ride time.
• Compact & Lightweight Design – Ensures easy integration into electric scooter motor systems.
• Durable & Long-Lasting – Built to withstand harsh environmental conditions.
• Non-Contact Magnetic Sensing – Reduces wear and tear, increasing sensor lifespan.
• Wide Voltage Compatibility – Operates between 3V – 24V DC, suitable for various EV models.

Technical Specifications

• Product Name: SENSOR PLATE AHH1-AH60-AHH1
• Sensor Type: Hall Effect Sensor
• Sensor Configuration: AHH1-AH60-AHH1
• Operating Voltage: 3V – 24V DC
• Output Signal: Digital ON/OFF
• Magnetic Sensitivity: High-precision rotor position detection
• Response Time: Ultra-fast for immediate motor feedback
• Operating Temperature: -40°C to 150°C
• Mounting Type: Pre-mounted on a sensor plate for easy installation
• Applications: Electric scooters, e-bikes, motor controllers, throttle systems
