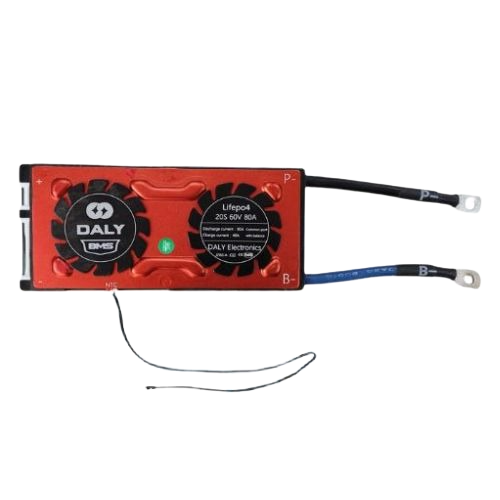

LFP 20S 80A SAME PORT W/P DALY BMS

The Daly BMS LFP 20S 80A Waterproof is an advanced Battery Management System (BMS) designed for 20-cell (20S) LiFePO4 battery packs. It ensures optimal battery performance, safety, and longevity in applications such as electric vehicles (EVs), solar energy storage, industrial power systems, and marine applications. With an IP67 waterproof rating, this BMS is built to withstand harsh environmental conditions, making it ideal for outdoor and high-performance energy systems.

The Daly BMS 20S 80A provides intelligent protection against overcharge, over-discharge, short circuits, and overheating. Engineered with high-quality MOSFETs, it enhances power efficiency while reducing heat generation, ensuring reliable operation for demanding applications.

Key Features

• 20S Configuration: Designed for 20-cell (20S) LiFePO4 battery packs.
• 80A Continuous Discharge Current: Provides stable power output.
• Intelligent Safety Features: Protects against overcharge, over-discharge, short circuits, and temperature fluctuations.
• IP67 Waterproof & Dustproof: Built for harsh outdoor and industrial environments.
• High-Quality MOSFETs: Reduces power loss and improves battery efficiency.
• Temperature Monitoring: Ensures safe battery operation under different conditions.
• Energy-Efficient Design: Enhances battery lifespan and power optimization.
• Compact & Durable Construction: Lightweight and easy to integrate into battery packs.

Technical Specifications

• Brand: DALY
• Model: J24K3
• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Cell Configuration: 20S (20 cells in series)
• Nominal Voltage: 64V
• Maximum Charge Voltage: 73.5V
• Continuous Charge Current: 80A
• Continuous Discharge Current: 80A
• Overcharge Protection: Yes
• Over-Discharge Protection: Yes
• Short Circuit Protection: Yes
• Waterproof Rating: IP67
• Temperature Range: -20°C to 60°C
